Ceiling Sensor White Body

SKU: 6606 | VT: VT-8091
6606-2
6606-3
6606-4
6606-5
6606-6
6606-7
6606-8
6606-9

Product benefits

  • Power saving
  • Available for indoor or outdoor purposes
  • Compatible with our range
  • Proven quality from reliable suppliers
  • Wide range of models to choose from

Applications

  • Outdoor areas like parking, garages, gardens and yards
  • Indoor areas like walkways, lobbies and staircases
Downloads
Manual
LVD Report
RoHS Report
ЕМС Report
EMC License
LVD License
RoHS License
Declaration of Conformity
PPWR Declaration of Conformity
Specifications
Electrical Data
Voltage
AC: 110-240V
Frequency
50/60Hz
Capabilities

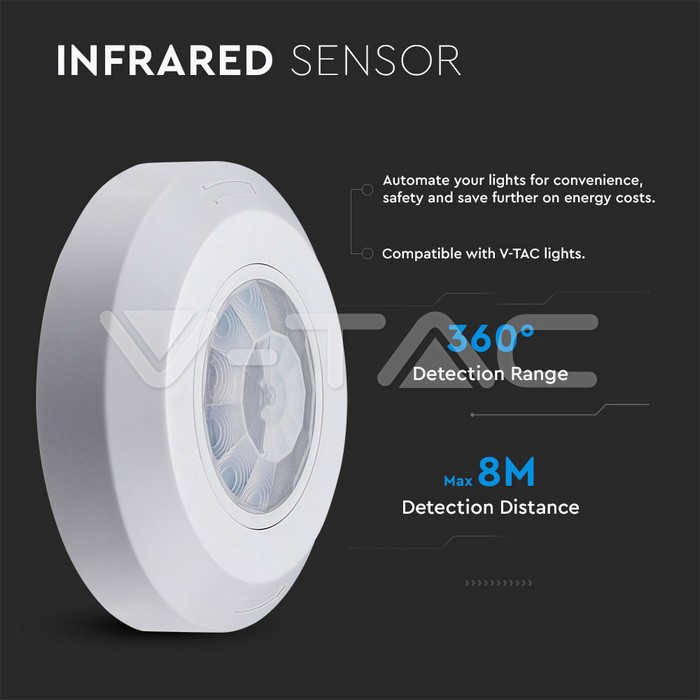

Sensor Type
Infrared Motion
Detection Range
360º
Detection Distance
Max.8m (<24º C)
Detection Motion Speed
0.6 - 1.5m/s

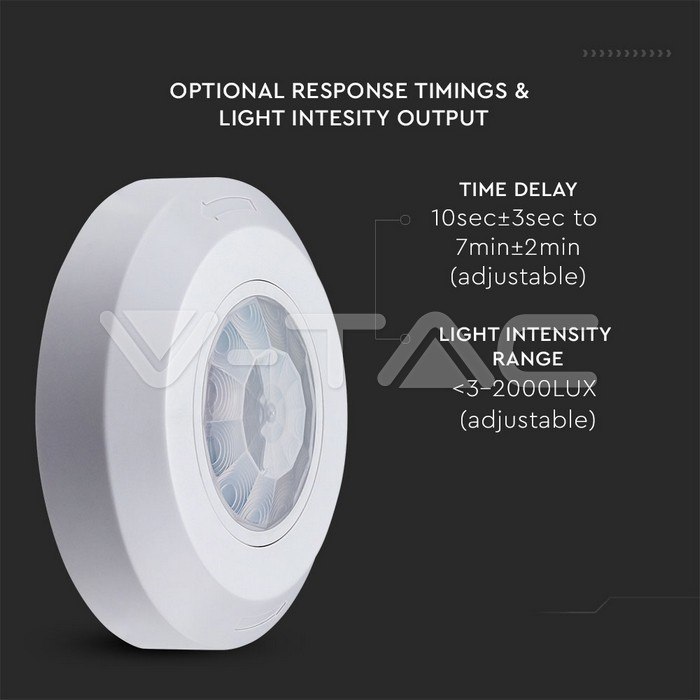

Time Delay
Min. 10sec±3sec. Max. 7min±2min
Rated Load
  • 400W (AC:220-240V) incandescent bulb
  • 200W (AC:110-130V) incandescent bulb
  • 200W (AC:220-240V) halogen/LED bulb
  • 100W (AC:110-130V) halogen/LED bulb
    • Ambient Light
    <3-2000LUX Adjustable
    Sensor
    Yes
    IP Rating
    IP20
    Product Data
    Order code
    6606
    Product code
    VT-8091
    Items per pack
    1
    Item Weight
    0,084
    Item Volume
    0,000154
    Items per box
    100
    Certificates & Standards
    Certification
    EMC, CE, ROHS
    Additional
    Release Date
    25.02.2020
    Warranty
    3 years
    Additional information

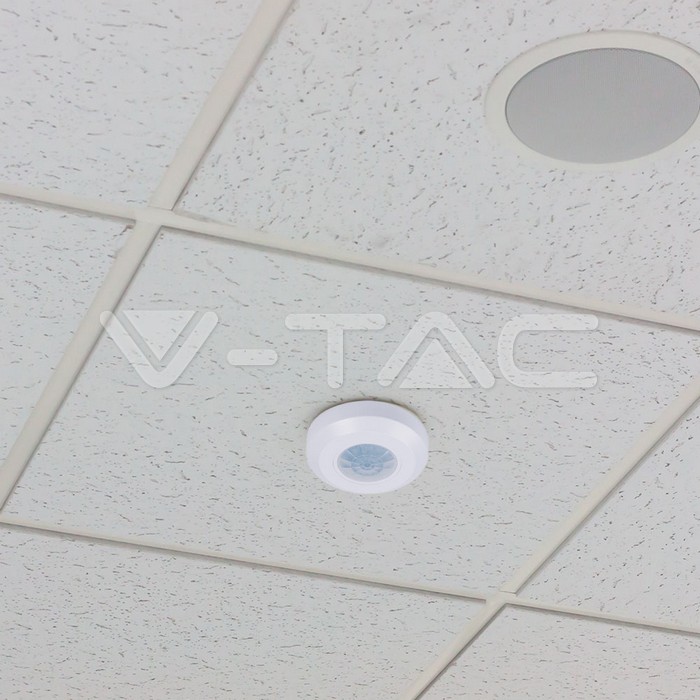

  • Installation height: 2.2-4m
  • Power consumption: approx. 0.9W
    • Dimensions Graphics
    Dimensions
    Manufacturer
    V-TAC
