Infrared Motion Sensor Black Body

SKU: 6610 | VT: VT-8093
6610-2
6610-3
6610-4
6610-5
6610-6
6610-7

Product benefits

  • Power saving
  • Available for indoor or outdoor purposes
  • Compatible with our range
  • Proven quality from reliable suppliers
  • Wide range of models to choose from

Applications

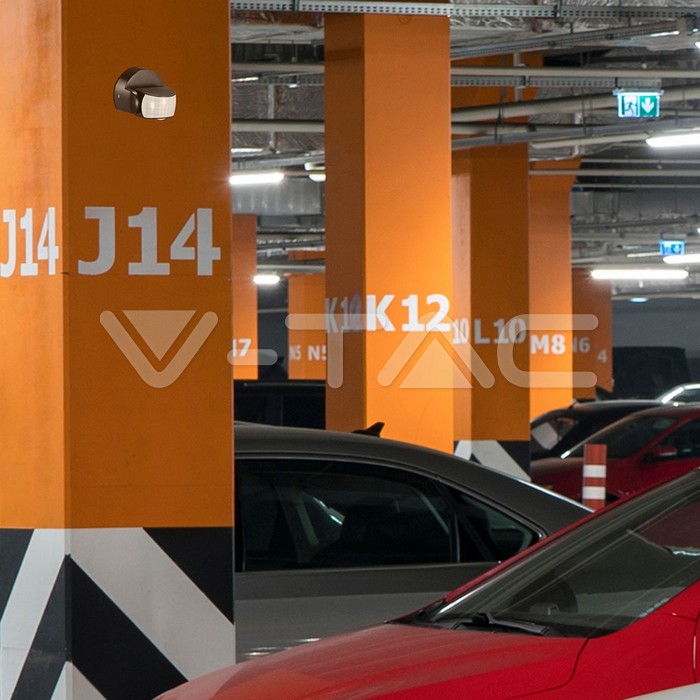

  • Outdoor areas like parking, garages, gardens and yards
  • Indoor areas like walkways, lobbies and staircases
Downloads
RoHS License
EMC License
LVD License
ЕМС Report
RoHS Report
LVD Report
Manual
Declaration of Conformity
PPWR Declaration of Conformity
Specifications
Electrical Data
Voltage
AC: 220-240V
Frequency
50/60Hz

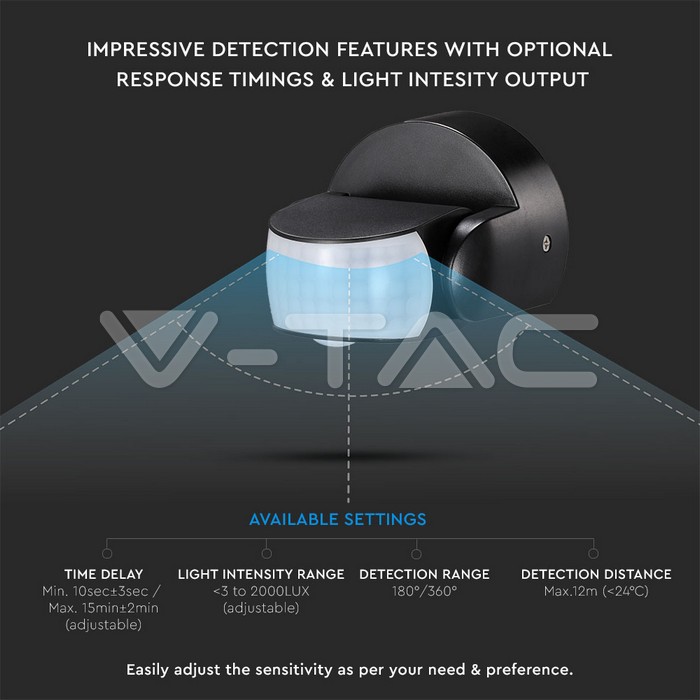

Capabilities
Sensor Type
Infrared Motion
Detection Range
180º/360º
Detection Distance
Max.12m (<24º C)
Detection Motion Speed
0.6 - 1.5m/s
Time Delay
Min. 10sec±3sec. Max. 15min±2min
Rated Load
  • 1200W incandescent bulb
  • 600W halogen/LED bulb
    • Ambient Light
    <3-2000LUX Adjustable
    Sensor
    Yes

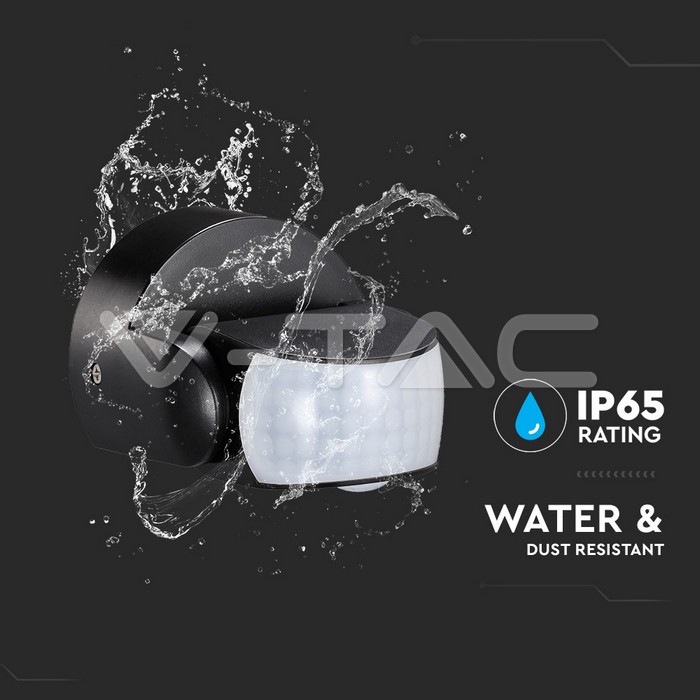

    IP Rating
    IP65
    Product Data
    Order code
    6610
    Product code
    VT-8093
    Items per pack
    1
    Item Weight
    0,17
    Item Volume
    0,000448
    Items per box
    50
    EAN Code
    3800157655231
    Certificates & Standards
    Certification
    CE, EMC, ROHS
    Additional
    Release Date
    02.04.2020
    Warranty
    5 years
    Additional information
  • Installation height: 1.8-2.5m
  • Power consumption: approx. 0.9W
    • Dimensions Graphics

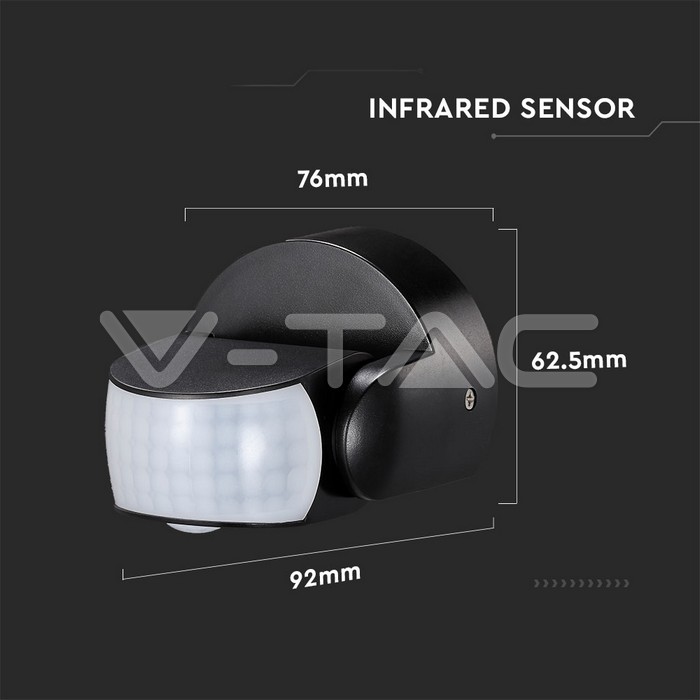

    Dimensions
    Manufacturer
    V-TAC
