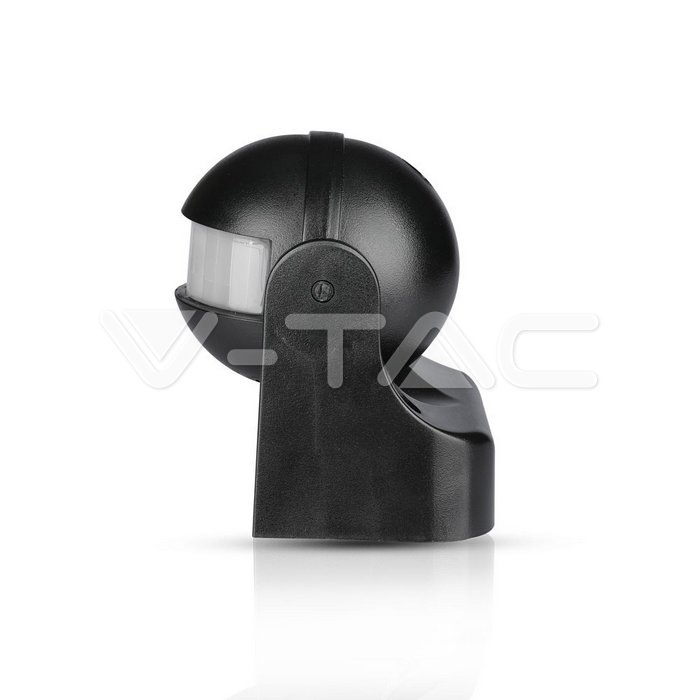

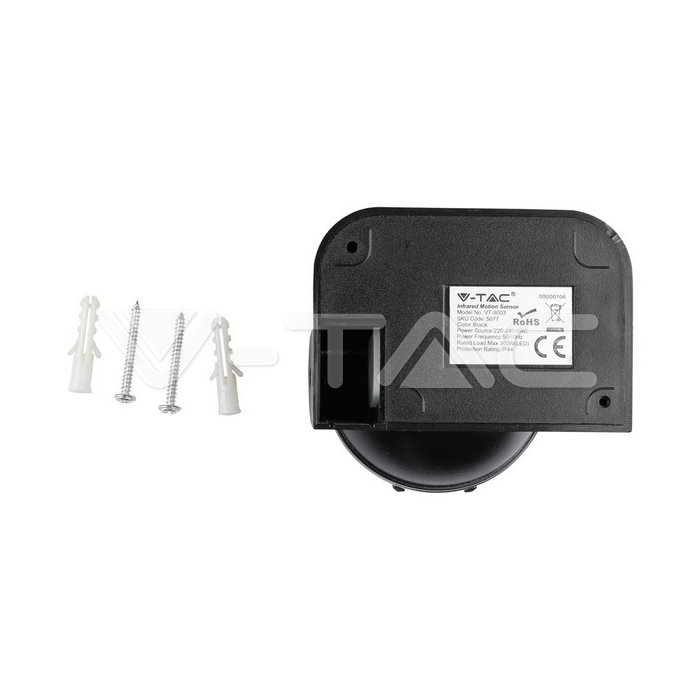

Infrared Motion Sensor Black Body

SKU: 5077 | VT: VT-8003
5077-2
5077-3
5077-4
5077-5
5077-6
5077-7
5077-8

Product benefits

  • Power saving
  • Available for indoor and outdoor purposes
  • Compatible with most of our models
  • Proven quality from reliable suppliers
  • Wide range of models to choose from

Applications

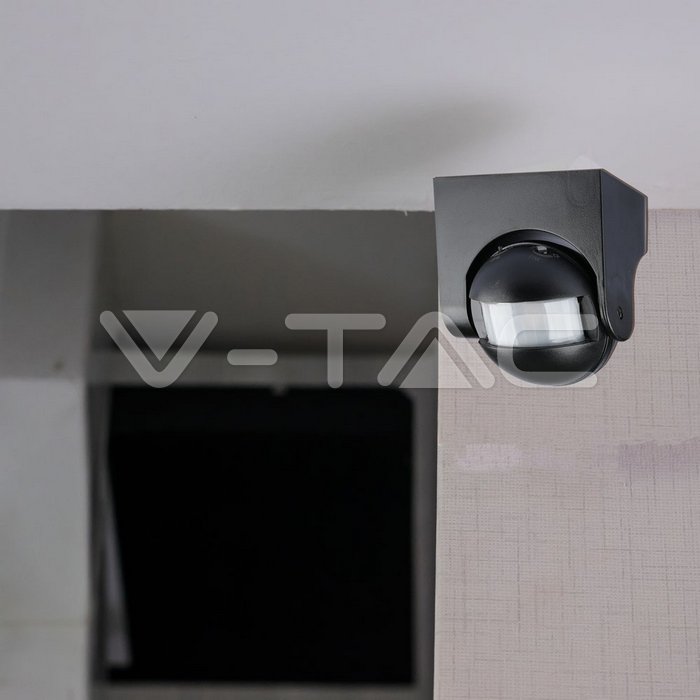

  • Outdoor areas like parking, garages, gardens and yards
  • Indoor areas like walkways, lobbies and staircases
Downloads
Technical Specifications
DEKRA License
N/A
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Declaration of Conformity
Manual
PPWR Declaration of Conformity
Specifications
General Information
Lifespan
20 000 hrs
Electrical Data
Voltage
AC: 220-240V
Body Details
Material
PC
Capabilities
Sensor Type
Infrared

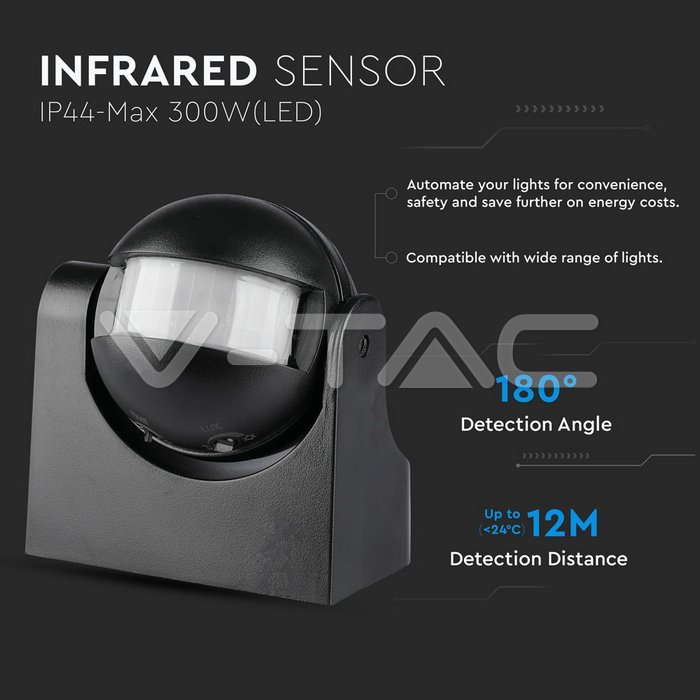

Detection Range
180’D
Detection Distance
Max.12m (<24º C)

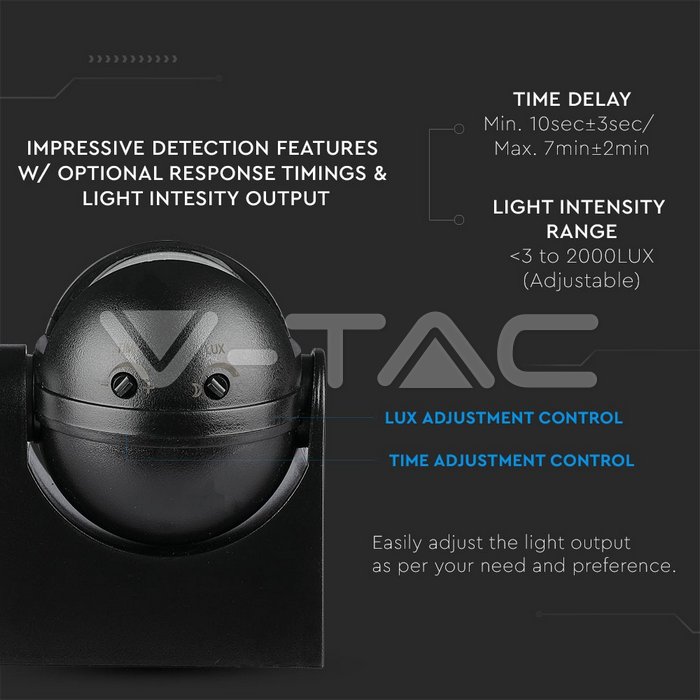

Time Delay
10 sec to 7min. Adjustable

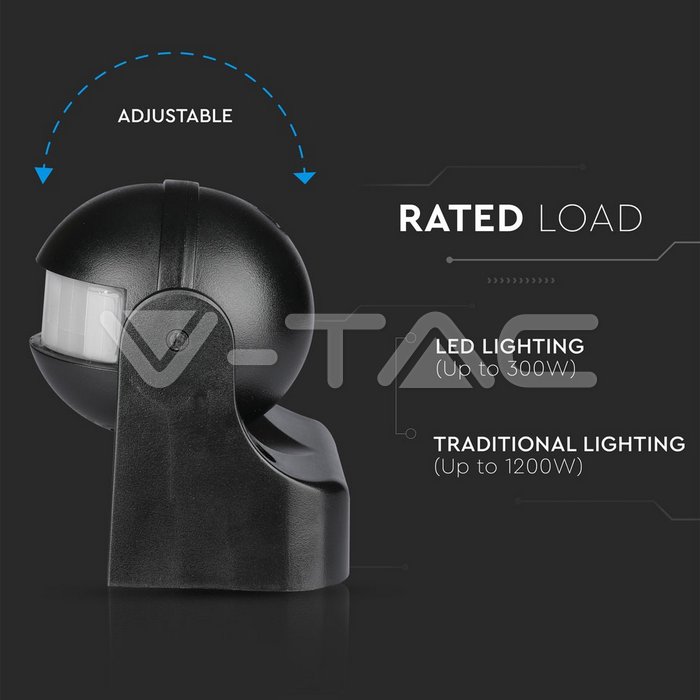

Rated Load
Max.300W
Ambient Light
<3-2000LUX Adjustable
Sensor
Yes
IP Rating
IP44
Dimensions
Size
86.4 x 60.4 x 98 mm
Product Data
Order code
5077
Product code
VT-8003
Items per pack
1
Item Volume
0,000182
EAN Code
3800157606875
Additional
Warranty
2 years
Manufacturer
V-TAC
