Infrared Motion Sensor

SKU: 5082 | VT: VT-8022
5082-2
5082-3
5082-4
5082-5
5082-6

Product benefits

  • Power saving
  • Available for indoor and outdoor purposes
  • Compatible with most of our models
  • Proven quality from reliable suppliers
  • Wide range of models to choose from

Applications

  • Outdoor areas like parking, garages, gardens and yards
  • Indoor areas like walkways, lobbies and staircases
Downloads
Technical Specifications
N/A
DEKRA License
N/A
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Declaration of Conformity
Manual
PPWR Declaration of Conformity
Specifications
General Information
Lifespan
20 000 hrs
Electrical Data
Voltage
AC: 110-240V
Capabilities
Sensor Type
IR Motion

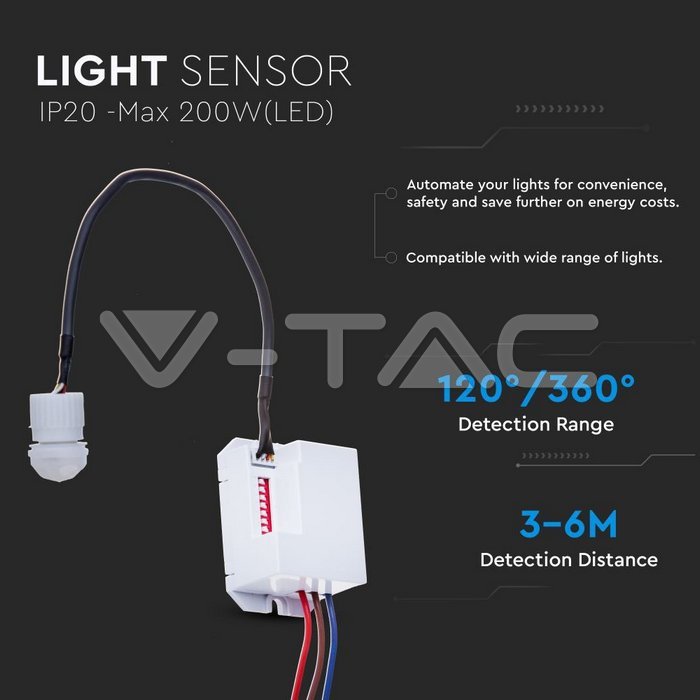

Detection Range
120’/360’D
Detection Distance
3m/6m(choice) (<24℃)

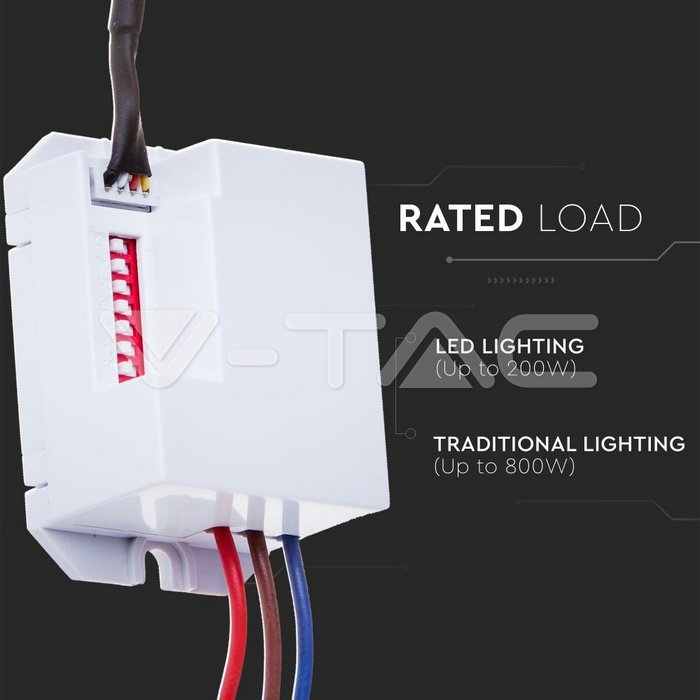

Rated Load
Max.500/800W

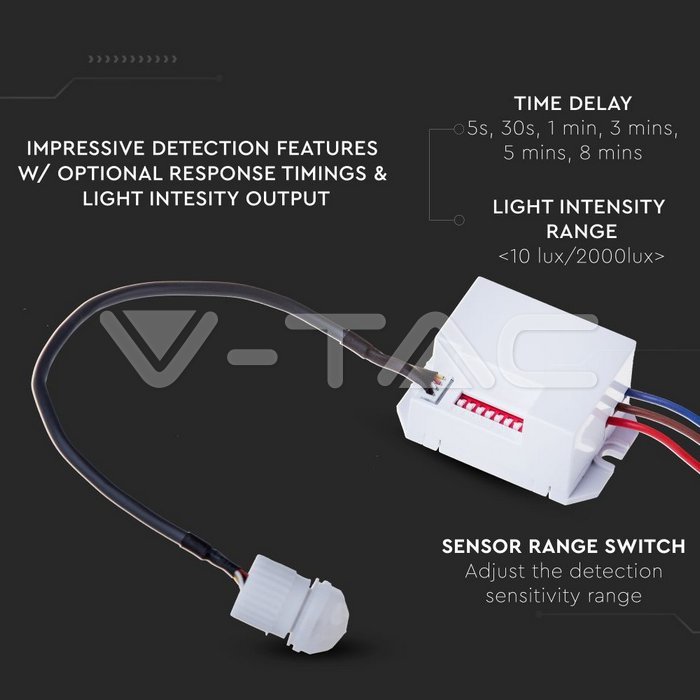

Ambient Light
<10-2000LUX Adjustable
Sensor
Yes
IP Rating
IP20

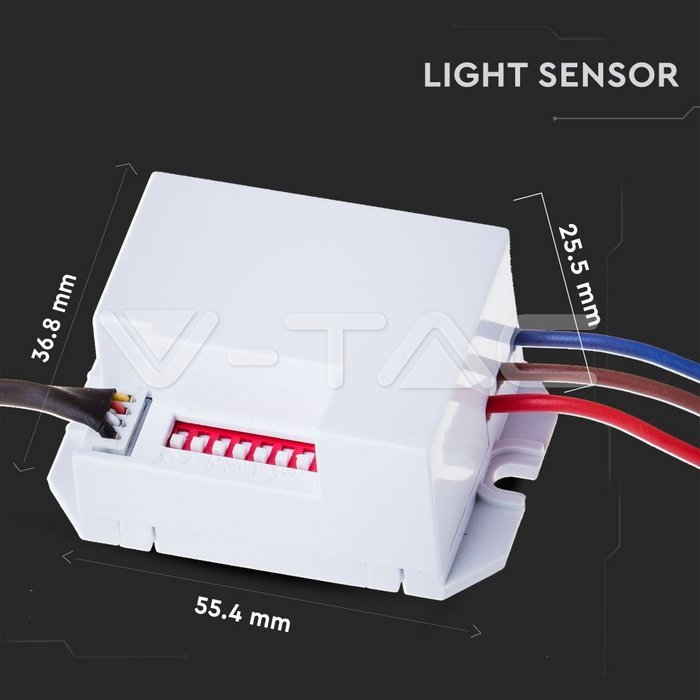

Dimensions
Size
36.8 x 25.5 x 55.4 mm
Product Data
Order code
5082
Product code
VT-8022
Items per pack
1
Item Volume
0,00434
EAN Code
3800157608022
Additional
Warranty
2 years
Dimensions Graphics
Dimensions
Manufacturer
V-TAC
