Infrared Motion Sensor White 360°

SKU: 1355 | VT: VT-8049
1355-2
1355-3
1355-4
1355-5
1355-6
1355-7

Product benefits

  • Power saving
  • Available for indoor and outdoor purposes
  • Compatible with most of our models
  • Proven quality from reliable suppliers
  • Wide range of models to choose from

Applications

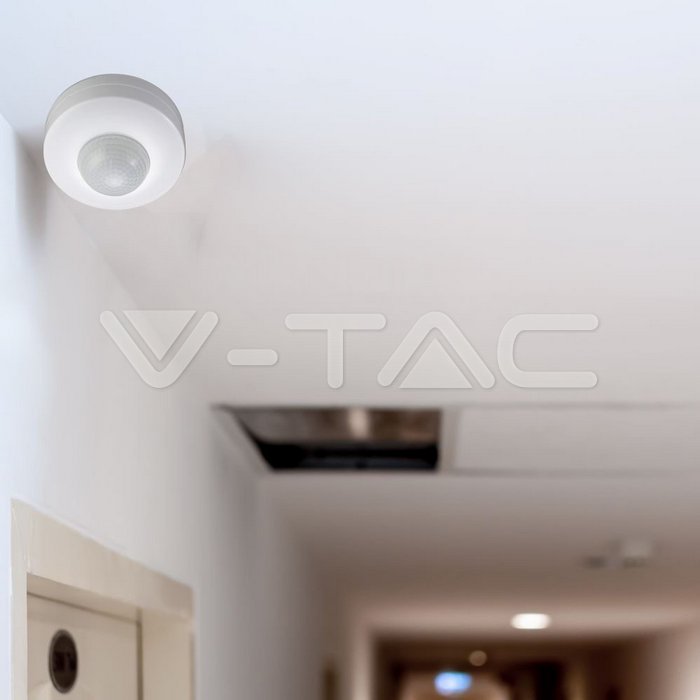

  • Outdoor areas like parking, garages, gardens and yards
  • Indoor areas like walkways, lobbies and staircases
Downloads
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Declaration of Conformity
Manual
PPWR Declaration of Conformity
Specifications
Electrical Data
Voltage
AC: 220-240V
Frequency
50/60Hz
Body Details
Capabilities

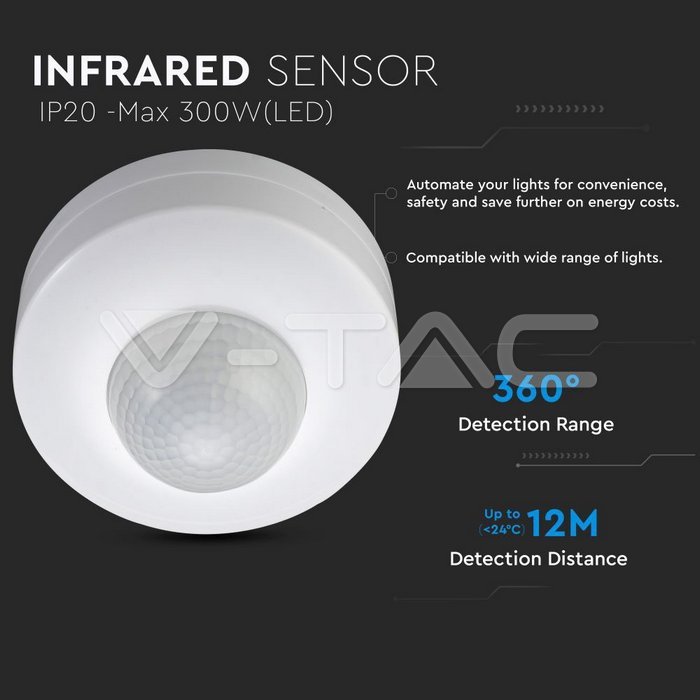

Sensor Type
Infrared
Detection Range
360º
Detection Distance
Max.12m (<24º C)
Detection Motion Speed
0.6 - 1.5m/s

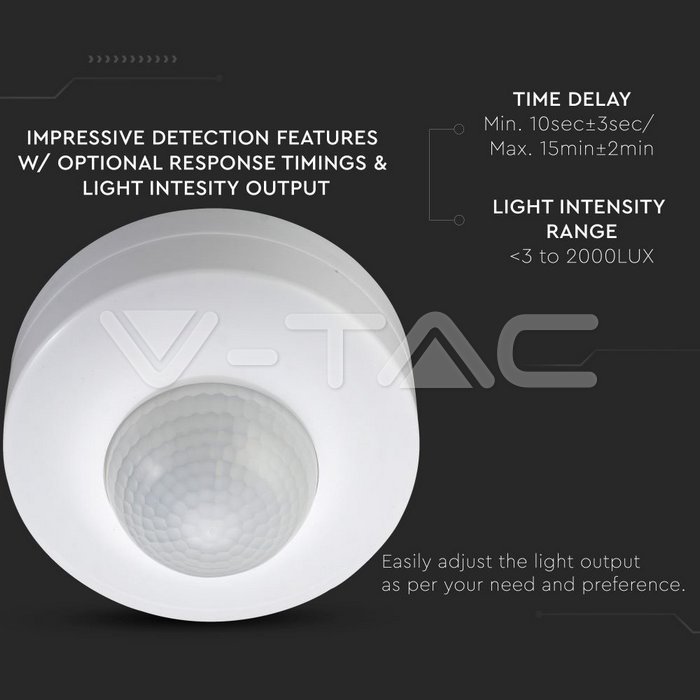

Time Delay
Min. 10sec±3sec. Max. 15min±2min

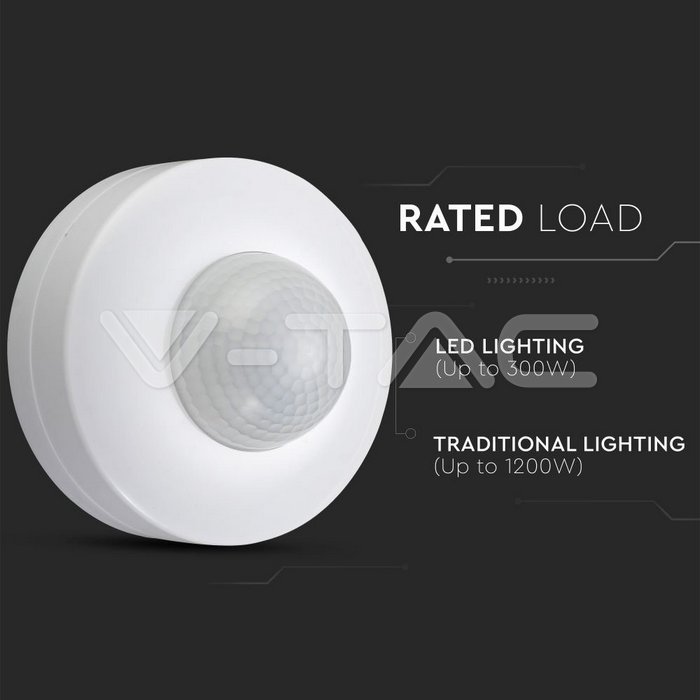

Rated Load
Max.1200W / 300W LED
Ambient Light
<3-2000LUX Adjustable
Compatibility
All V-TAC range up to 300W
Sensor
Yes
IP Rating
IP20

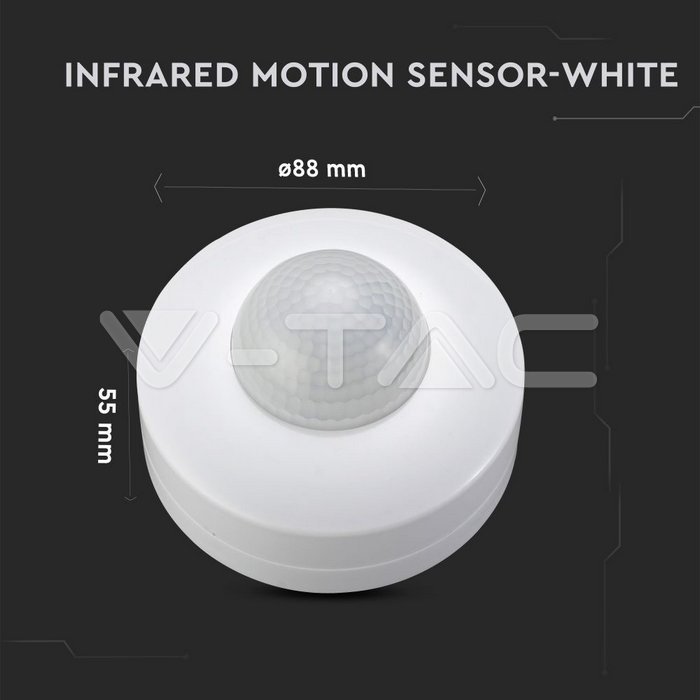

Dimensions
Size
Ø 88 x 55 mm
Product Data
Order code
1355
Product code
VT-8049
Items per pack
1
Item Weight
0,137
Item Volume
0,000486
Items per box
50
EAN Code
3800157624800
Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Warranty
2 years
Additional information

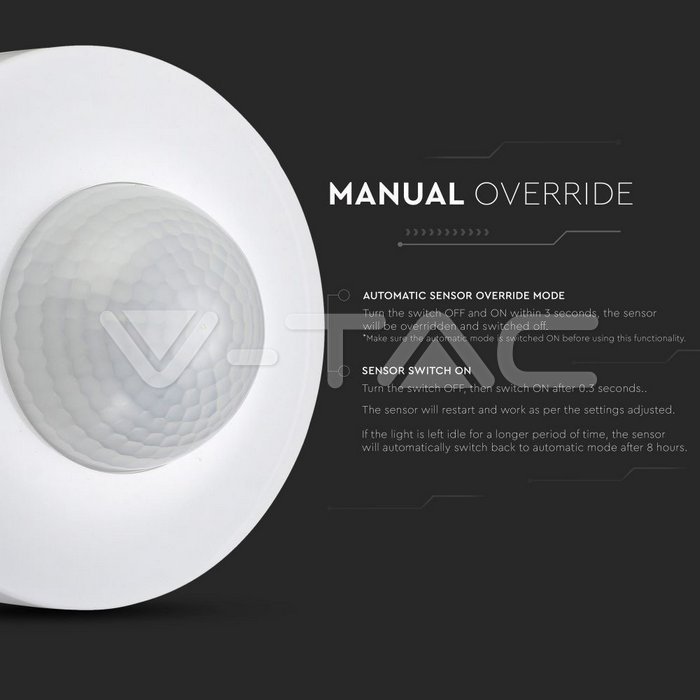

Manual override function; Installation height 2.2 - 4m
Manufacturer
V-TAC
