Switch Microwave Sensor White

SKU: 15021 | VT: VT-8084
15021-2

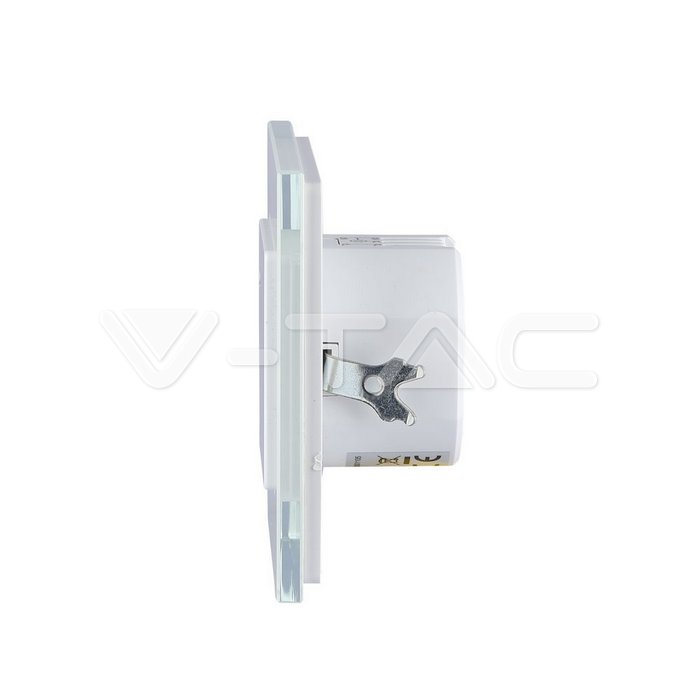

15021-3
15021-4
15021-5
15021-6
15021-7
15021-8
15021-9
15021-10

Product benefits

  • Available for indoor purposes
  • Compatible with all of our models uptp 300W
  • Proven quality from reliable suppliers
  • Wide range of models to choose from
Downloads
Manual
EMC License
LVD License
RoHS License
LVD Report
RoHS Report
ЕМС Report
Declaration of Conformity
PPWR Declaration of Conformity
Specifications
Electrical Data
Voltage
AC: 220-240V
Frequency
50/60Hz
Body Details
Material
PC
Body color
White
Capabilities

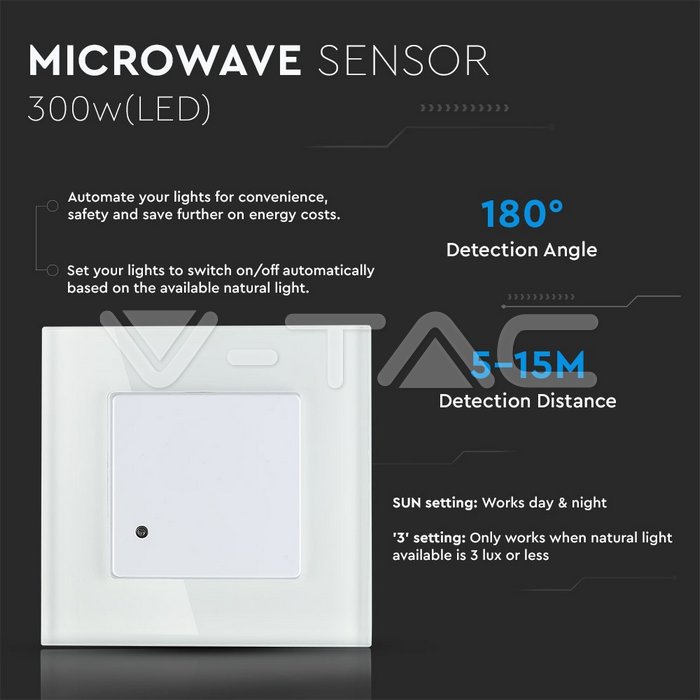

Sensor Type
Microwave
Detection Range
180°
Detection Distance
5 - 15 m
Detection Motion Speed
0.6-1.5m/s

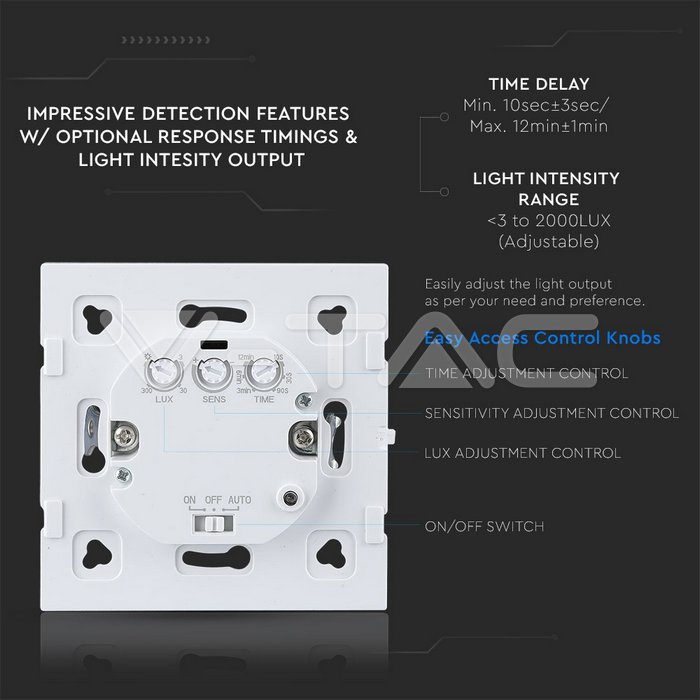

Time Delay
Min. 10sec±3sec Max.12min±1min Adjustable

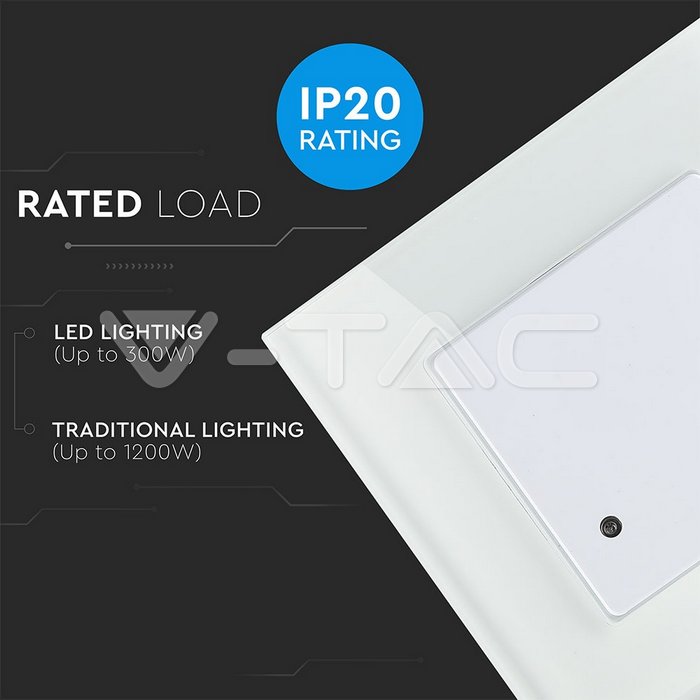

Rated Load
Max.1200W / 300W LED
Ambient Light
<3-2000LUX Adjustable
Sensor
Yes
IP Rating
IP20
Dimensions
Mounting Size
1-1.8m Installation height
Product Data
Order code
15021
Product code
VT-8084
Items per pack
1
Item Weight
1,7
Item Volume
0,00055
Items per box
50
EAN Code
3800157641272

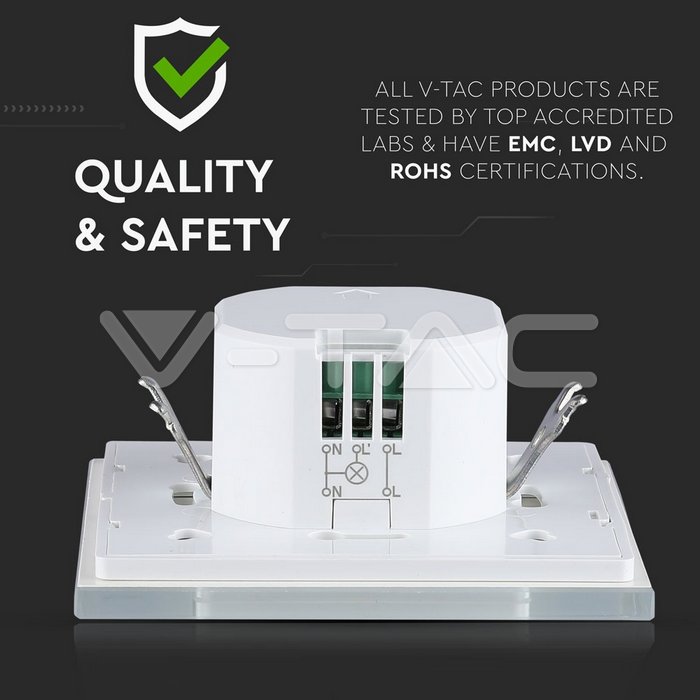

Certificates & Standards
Certification
CE, EMC, ROHS
Additional
Warranty
2 years
Additional information
HF system: 5.8GHz CW radar, ISM band; Approx.0.9W power consumption
Dimensions Graphics
Dimensions
Manufacturer
V-TAC
