10W LED Bollard Light CREE Chip 3000K Black Body IP65

SKU: 243516 | VT: VT-120011
243516-2
243516-3
243516-4
243516-5
243516-6
243516-7

Downloads
3D Model
IES File
Product Information Sheet
Manual
PPWR Declaration of Conformity
Specifications
General Information
LED Chip

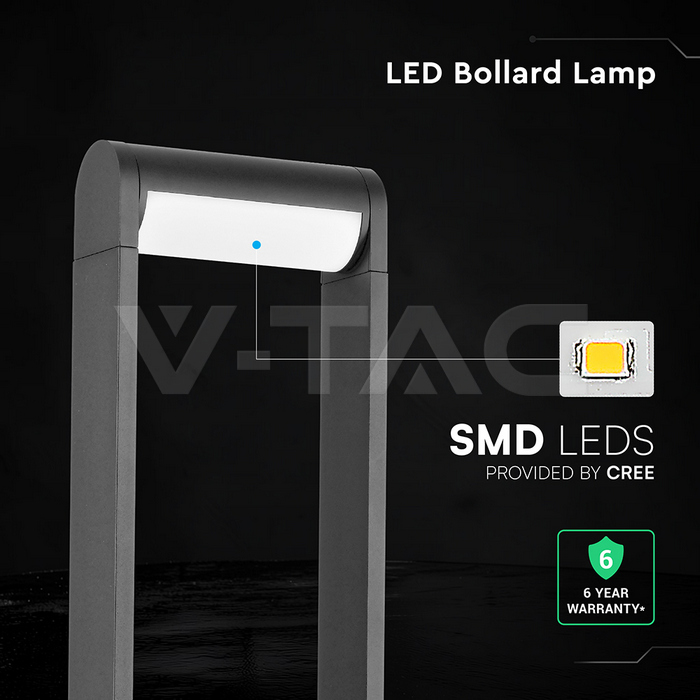

SMD-CREE Chip
Lifespan
30,000 Hours
Electrical Data
Wattage
10W
Voltage
AC:220-240V
Frequency
50Hz
Technical Data
Luminous efficiency (lm/W)
155 lm/W

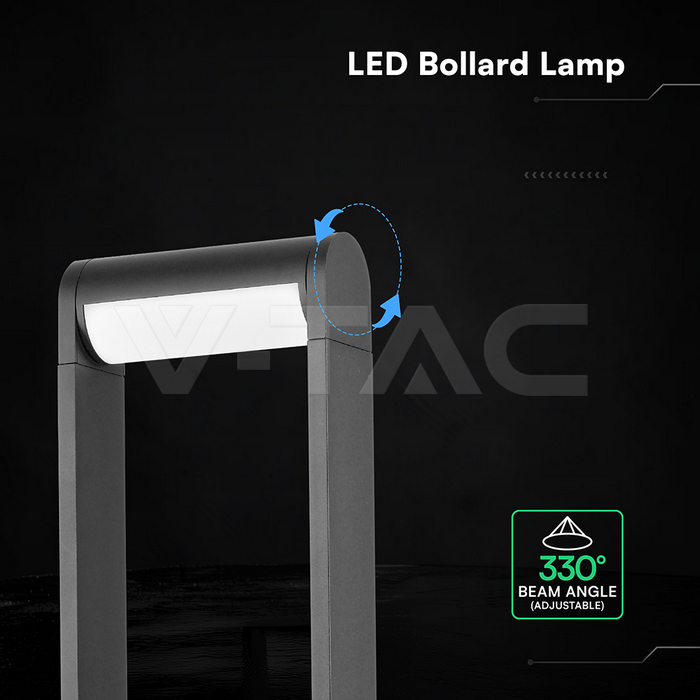

Beam angle
330°
Light color
Warm White
Color Temperature
3000K
Luminous flux (lm)
1550 lm
Color Rendering Index CRI
>90
Body Details
Body color
Black
Material
Aluminium
Capabilities
IP Rating

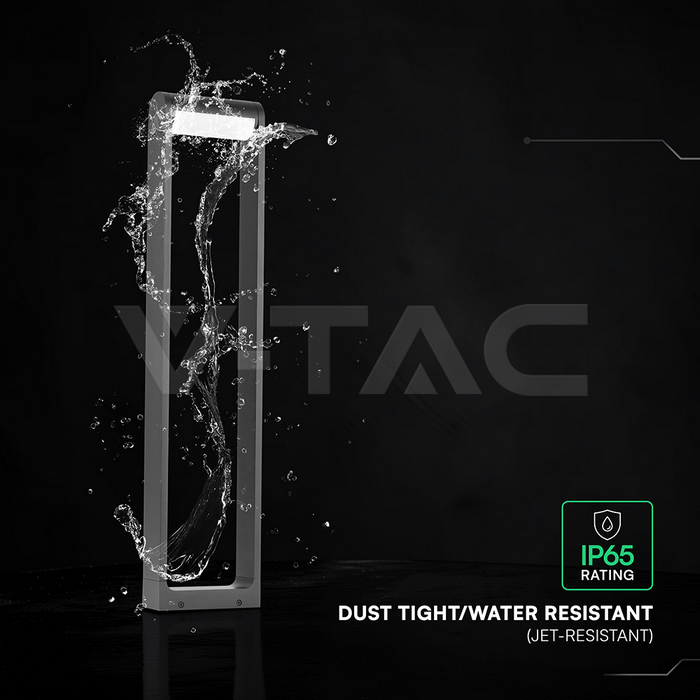

IP65
IK Rating
IK06
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Dimensions
Size

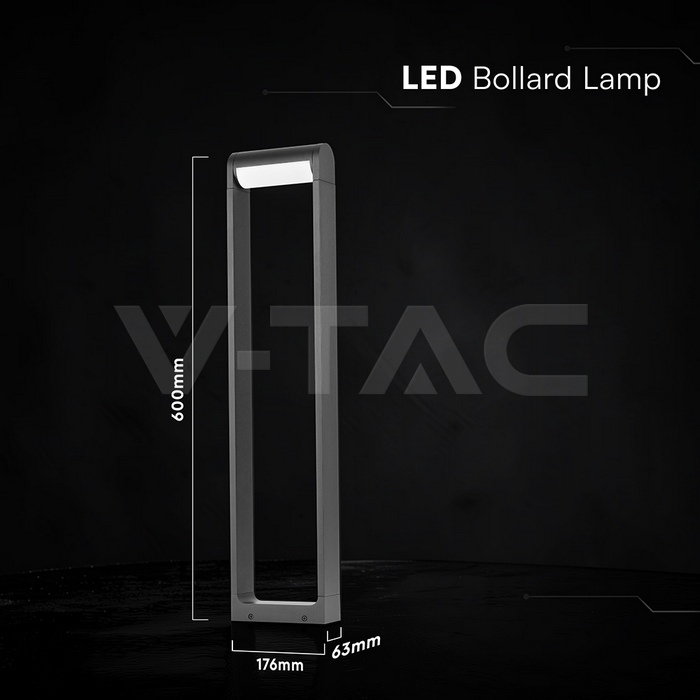

176x63x600 mm
Product Data
Order code
243516
Product code
VT-120011
Items per pack
1
Item Weight
1.88
Item Volume
0.012695
Items per box
10
EAN Code
3800170260269
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
D
Additional
Release Date
21.07.26
Manufacturer
V-TAC
Warranty
6 Years
Energy Class Graphics
Energy Class
