5W LED Wall Light 3000K IP54

SKU: 24317 | VT: VT-10189
24317-2
24317-3
24317-4
24317-5
24317-6

Downloads
Product Information Sheet
Manual
PPWR Declaration of Conformity
Specifications
General Information
LED Chip
SMD
Lifespan
20,000 Hours
Electrical Data
Wattage
5W
Voltage
AC:220-240V
Frequency
50Hz
Technical Data
Luminous efficiency (lm/W)
140 lm/W
Beam angle
110°
Light color
Warm White
Color Temperature
3000K
Luminous flux (lm)
700 lm
Color Rendering Index CRI
>80
Body Details
Body color
Black
Material
Aluminium
Capabilities

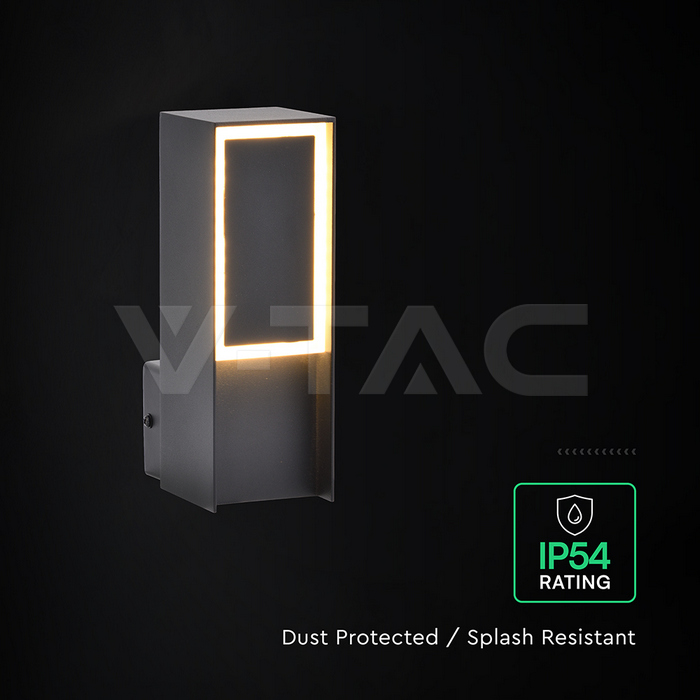

IP Rating
IP54
IK Rating
IK08
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
On/Off cycles
>15000
Working conditions
-25°C to +45°C
Dimensions

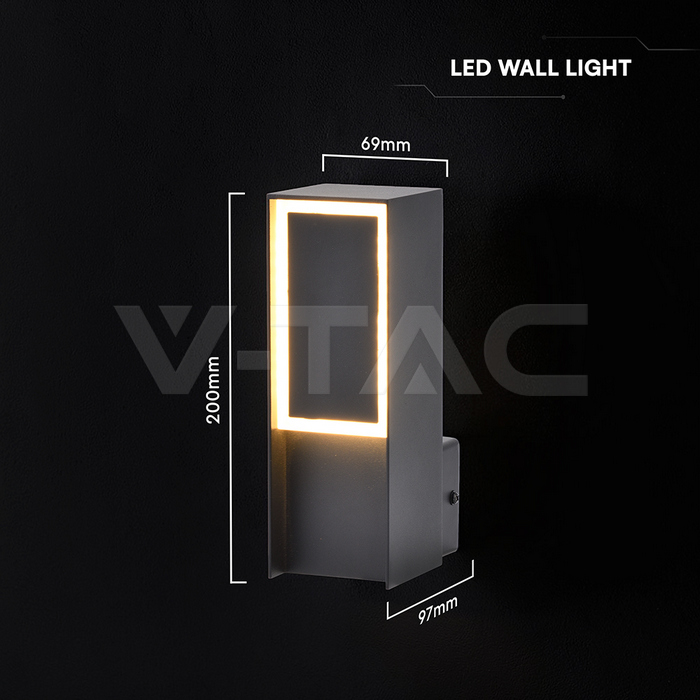

Size
97x69x200 mm
Product Data
Order code
24317
Product code
VT-10189
Items per pack
1
Item Weight
0.61
Item Volume
0.002182
Items per box
24
EAN Code
3800170259973
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
E
Additional
Release Date
05.08.26
Manufacturer
V-TAC
Warranty
2 Years
Energy Class Graphics
Energy Class
