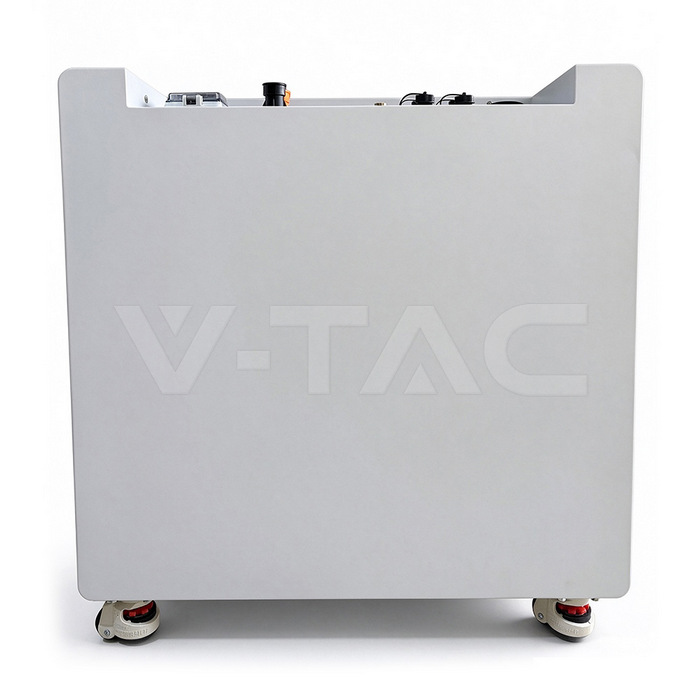

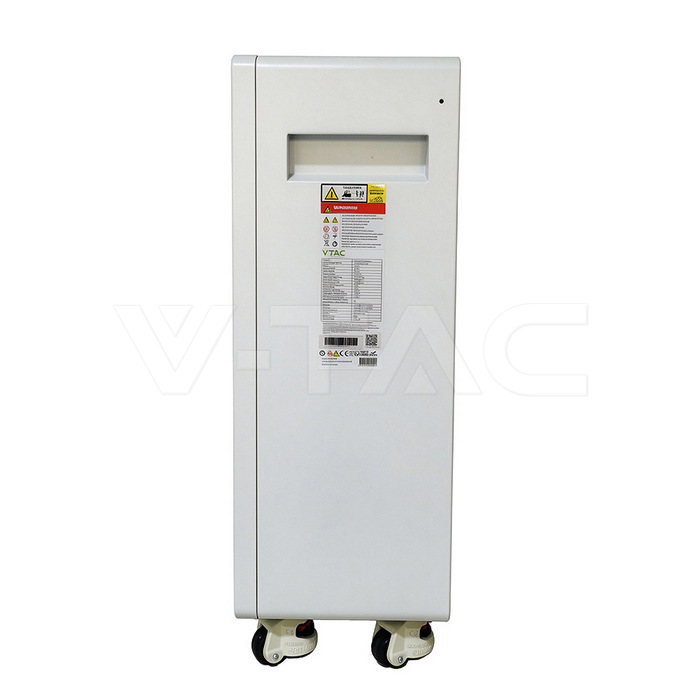

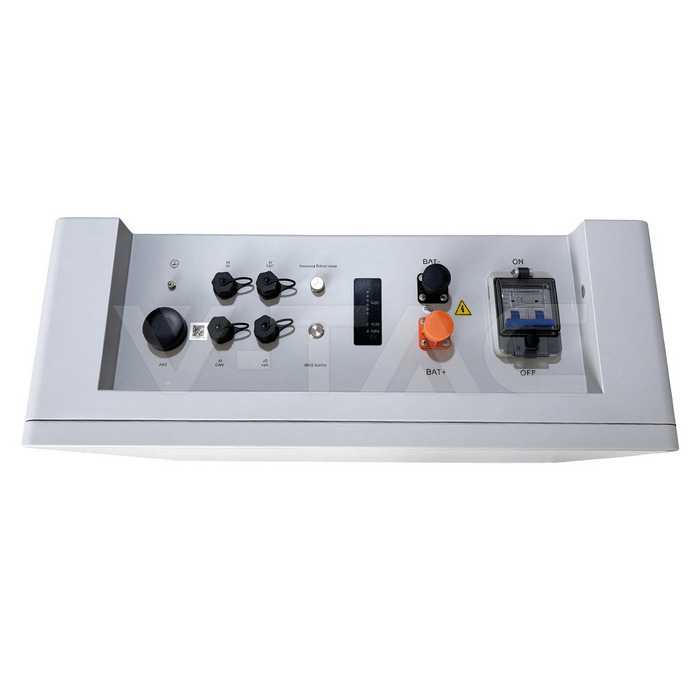

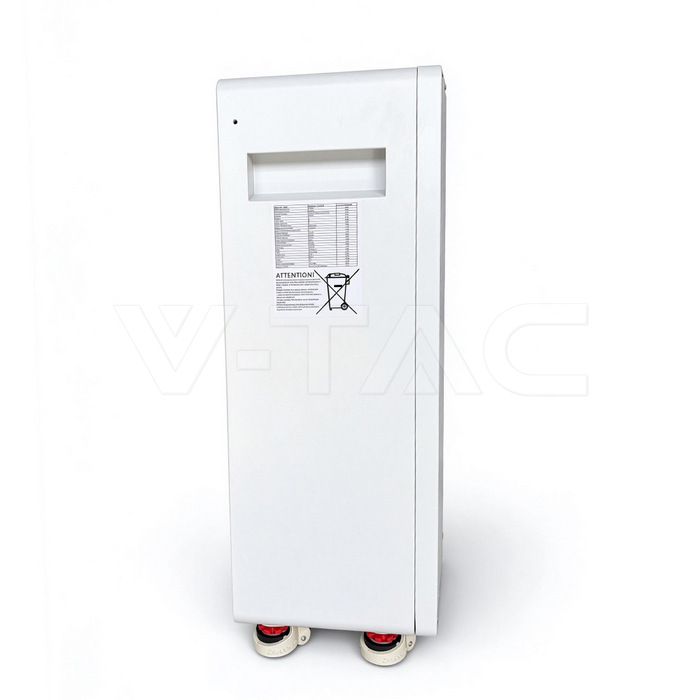

16.07kWh LiFePO4 Battery Floor Mounting IP65 7000 Cycles Low Temperature Intelligent Heating

SKU: 12788 | VT: VT-48290
12788-12789-2
12788-12789-3
12788-12789-4
12788-12789-5

Downloads
Manual
IEC 62619
Warranty Conditions
Declaration of Conformity
CEI 0-21
||
CE
Technical Specifications
Specifications
General Information
Electrical Data
Current
  • Recommended Charge Current: 140A
  • Max. Charge/Discharge Current: 150A
Wattage
16.07kWh
Voltage
  • Nominal Voltage: 51.2V
  • Float Charge Voltage: 57.6V
  • Discharge Cut-off Voltage: 43.2V
Body Details
Mount
Floor Mounting
Capabilities
IP Rating
IP65
Cells Chemistry
LiFePO4
Battery Capacity
314 Ah
On/Off cycles
>7000
Working conditions
  • Charge Temperature Range (°C): −20 to 55;
  • Discharge Temperature Range (°C): −20 to 60;
  • Storage Temperature Range (°C): 15 to 35;
  • Working Temperature Range (°C): −20 to 60
Dimensions
Size
680 x 240 x 710mm
Product Data
Order code
12788
Product code
VT-48290
Items per box
1
Additional
Release Date
10.11.26
Brand
V-TAC
Warranty
10 years
Additional information
  • Low Temperature
  • Built-in Intelligent Heating System
  • Communication with Inverter: CAN
  • With wheels
