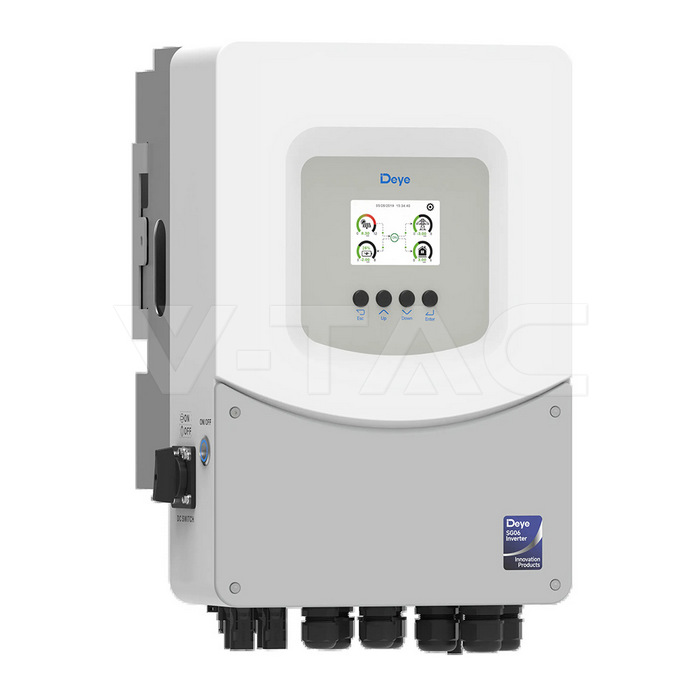

3.6kW Hybrid Solar Inverter Single Phase Deye 10yrs Warranty

SKU: 12790 | VT: SUN-3.6K-SG06LP1-EU-BM2
12790-2
12790-3
12790-4

Downloads
Manual
CEI 0-21
|||
Technical Specifications
Specifications
General Information
Electrical Data
Wattage
  • Max. PV Access Power: 7200W;
  • Max. PV Input Power: 5760W;
  • Rated AC Input/Output Active Power: 3600W;
Current
  • Max. Operating PV Input Current: 18+18A;
  • Max. Input Short-Circuit Current: 27+27A;
  • Rated AC Input/Output Current: 16.4/15.7A;
  • Max. AC Input/Output Current: 18/17.3A
  • Max. Continuous AC Passthrough (grid to load): 50A
Phase
Single Phase
Voltage
  • Max. PV Input Voltage: 500V;
  • Start-up Voltage: 125V;
  • MPPT Voltage Range: 150-425V;
  • Rated PV Input Voltage: 370V
Frequency
50/45-55, 60/55-65 Hz
Power Factor
0.8 leading to 0.8 lagging
Capabilities
IP Rating
IP65
Working conditions
-40~60°C, >45°C derating
Dimensions
Size
310 x 460 x 218 mm
Product Data
Order code
12790
Product code
SUN-3.6K-SG06LP1-EU-BM2
Item Weight
15.6 kg
Certificates & Standards
Certification
CEI 0-21, EN 50549, IEC 61727, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Additional
Release Date
15.10.26
Brand
Deye
Additional information
WIFI, RS485, CAN
Warranty
10 years
