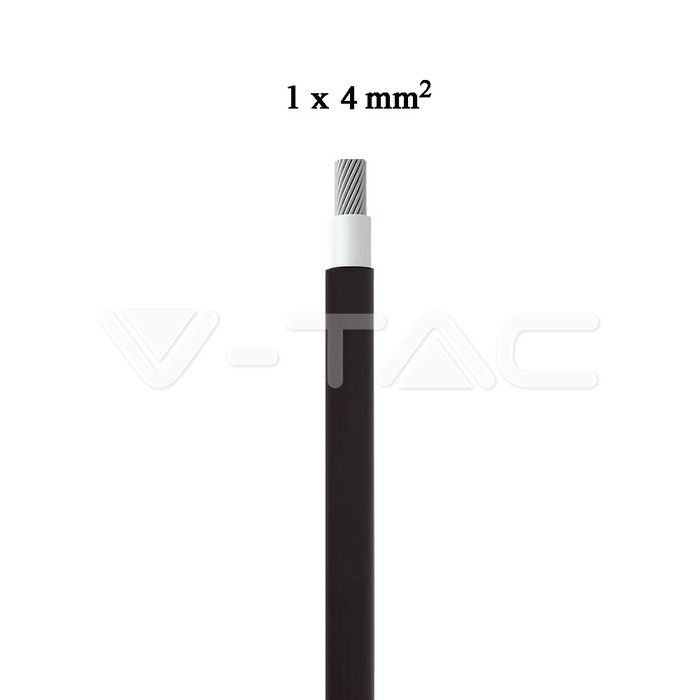

PV Cable 4SQ Black For Solar Panel 50meters

SKU: 11822 | VT:
11822-2

Downloads
TÜV Certificate
Technical Specifications
PPWR Declaration of Conformity
Specifications
General Information
Product Data
Order code
11822
Items per pack
50m.
Item Weight
2.95
Item Volume
0.0026
Additional
Release Date
21.06.2023
Additional information
  • Conductor: Stranded tinned copper
  • Size: 4mm²
  • Stranding: 56/0.285±0.01mm
  • Diameter: 2.4mm
  • Primary Insulation: XLPE
  • Minimum Average Thickness: 0.7mm
  • Color: Black
  • Secondary Insulation: XLPE
  • Outer Diameter: 5.5±0.15mm

Electrical Characteristics

  • EN 50618/IEC 62930: AC: 1000V; DC: Max.1500V
  • Ambient Temperature: -40°C up to 90°C
  • At 20℃ Insulation Resistance: ≥ 709 MΩ.km
  • Current carrying capacity AT 30℃: 57A
  • Spark test: 10000 VAC
  • Voltage Withstand: 6500 VAC
  • Conductor Resistance AT 20℃: ≤5.09 Ω/km
Manufacturer
V-TAC
